Ruijie Wi-Fi7 BE5040 dual-band ceiling AP;Wi-Fi 7,BE5040,2.5GE Port

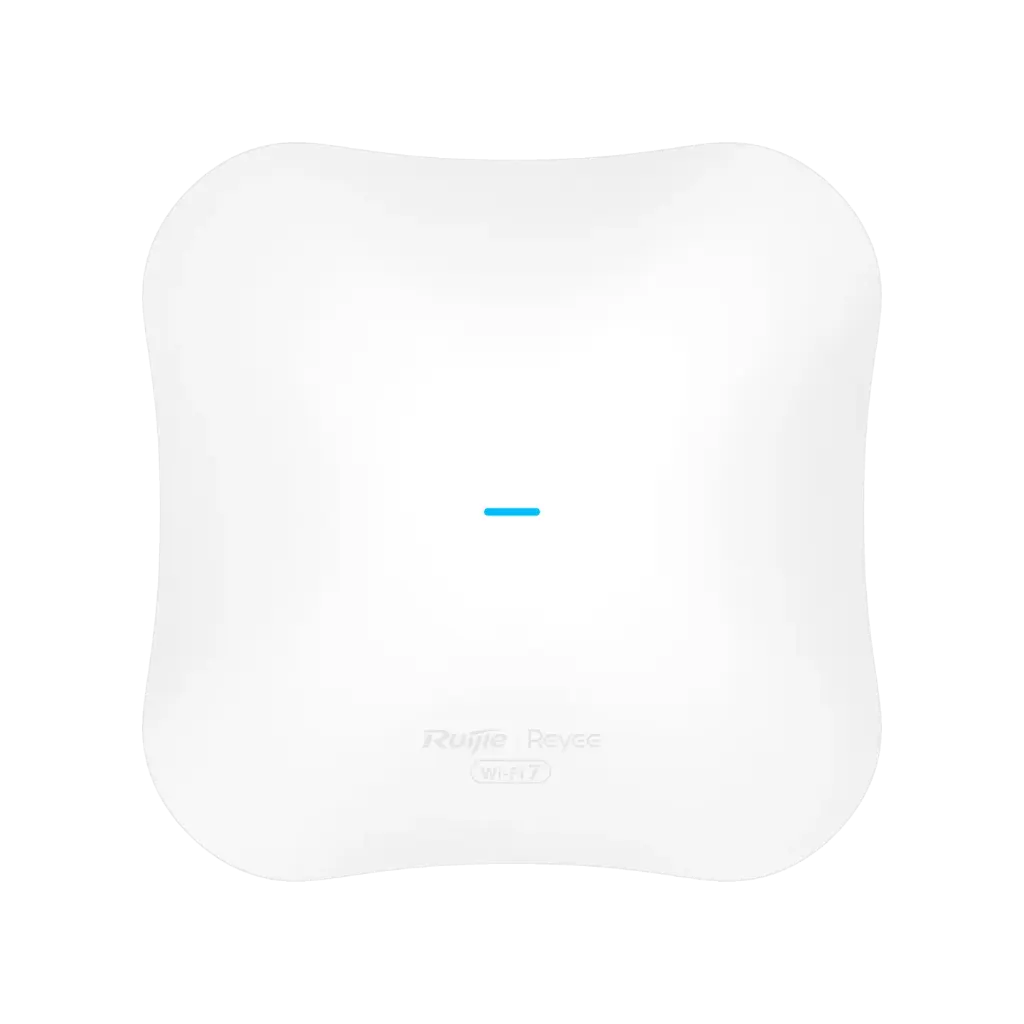

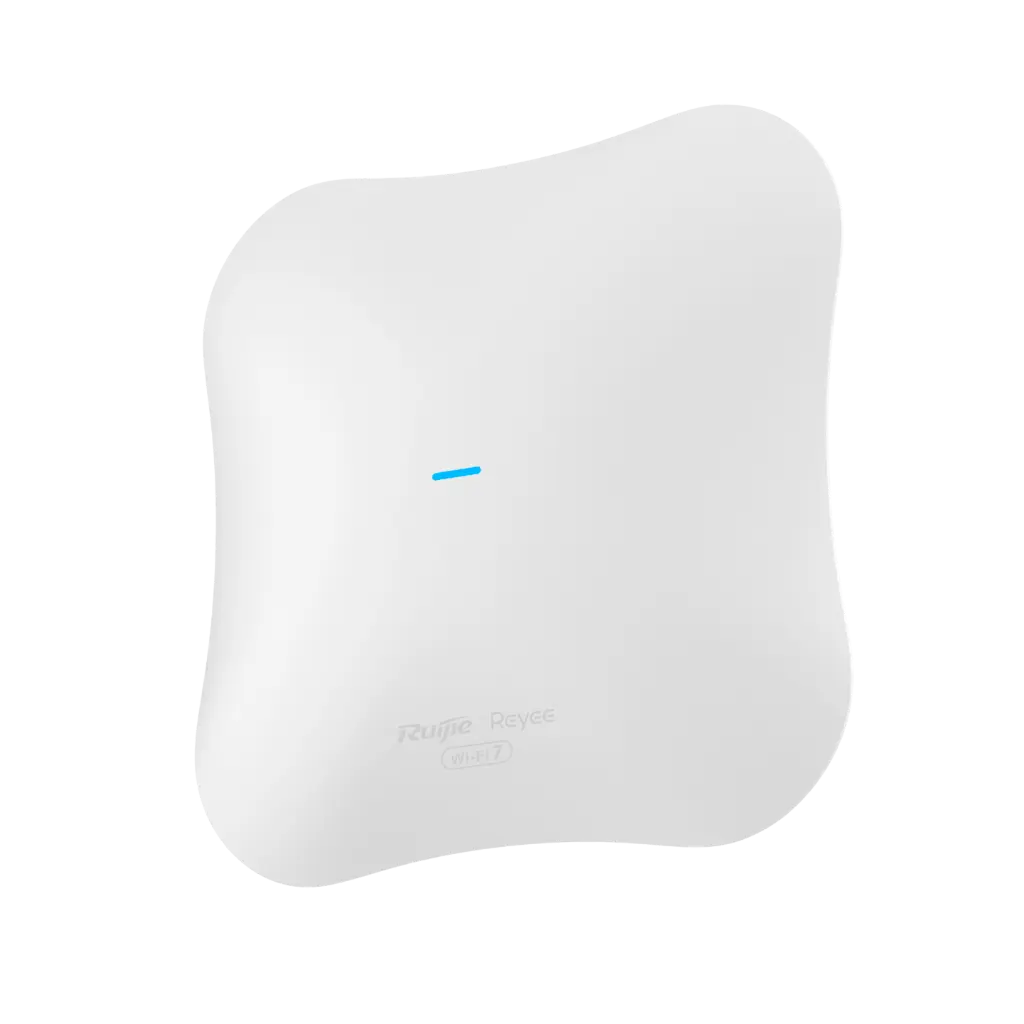

RG-RAP72Pro Wi-Fi 7 BE5040 Dual-Band Ceiling Access Point with 2.5GE Port

Ruijie

Features

• Dual-band Wi-Fi 7 (802.11be) with up to 5.04Gbps aggregate wireless rate (BE5040)
• 1 x 10/100/1000/2500BASE-T (2.5GE) Gigabit Ethernet Port for ultra-high-speed wired uplink
• Leverages Multi-Link Operation (MLO) and 4K QAM for peak performance and efficiency
• Supports Ruijie Cloud management for remote control, monitoring, and optimization
• Integrated omni-directional antennas for optimized signal coverage
• Supports 802.3at Power over Ethernet (PoE+) for flexible and simplified deployment
• Intelligent QoS for optimized network performance and traffic prioritization
• Advanced security features: WPA3, WPA/WPA2-PSK, WPA/WPA2-Enterprise
• High-density user access capability with advanced OFDMA and BSS Coloring
• Supports seamless roaming and load balancing
• Sleek ceiling-mount design for discreet integration

Specifications

Professional Overview

The Ruijie RG-RAP72Pro is a cutting-edge Wi-Fi 7 (802.11be) BE5040 dual-band ceiling access point, meticulously engineered to deliver the absolute forefront of wireless connectivity for the most demanding high-density enterprise environments. Providing an astounding aggregate wireless rate of up to 5.04Gbps (1148Mbps on 2.4GHz and 3892Mbps on 5GHz), this access point is designed for scenarios that require unparalleled speed, extremely low latency, and massive capacity, making it the ideal choice for future-proofing networks in large corporate offices, advanced educational institutions, high-traffic public venues, and smart industrial spaces. It is perfectly suited for supporting emerging bandwidth-hungry applications like augmented/virtual reality, 8K video streaming, real-time cloud computing, and expansive IoT deployments.

Leveraging the revolutionary features of Wi-Fi 7, including Multi-Link Operation (MLO) for enhanced efficiency and resilience, and 4K QAM modulation for packing significantly more data into each signal, the RG-RAP72Pro sets a new benchmark for wireless performance. These advancements dramatically improve network efficiency and capacity, allowing numerous devices to transmit and receive data simultaneously with unprecedented speed and minimal delay. Its single 2.5 Gigabit Ethernet (2.5GE) port serves as a high-speed uplink, ensuring that the wired backbone can comfortably handle the immense wireless throughput without becoming a bottleneck, fully realizing the potential of Wi-Fi 7 and ensuring a robust data flow to the core network.

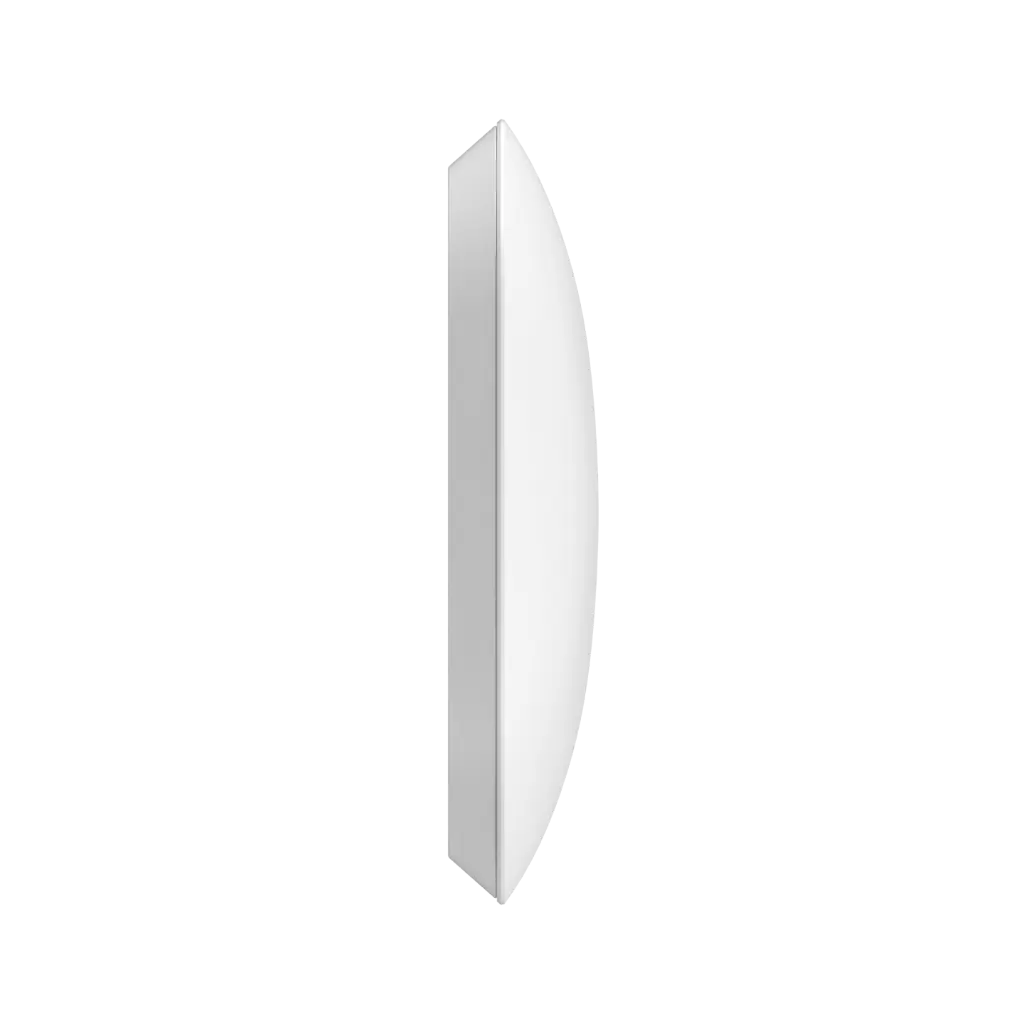

The sleek ceiling-mount design of the RG-RAP72Pro allows for discreet integration into various indoor environments, providing optimal omni-directional signal coverage across the designated area. This aesthetic consideration is crucial for maintaining a clean and professional look in modern corporate and public spaces. Power over Ethernet Plus (802.3at PoE+) support further simplifies installation by allowing both power and data to be delivered over a single Ethernet cable. This eliminates the need for nearby power outlets, significantly reducing cabling complexity and enabling flexible deployment options in locations where power access might be limited, ensuring a clean and efficient setup.

As a core component of Ruijie's Reyee Cloud ecosystem, the RG-RAP72Pro offers robust cloud management capabilities. Network administrators can leverage the intuitive Ruijie Cloud App or web GUI for zero-touch provisioning, remote monitoring, configuration, and advanced troubleshooting from anywhere, at any time. This centralized management simplifies complex deployments, significantly reduces operational costs, and ensures consistent, optimized network performance across an entire property. The Ruijie RG-RAP72Pro delivers a powerful combination of bleeding-edge Wi-Fi 7 performance, multi-Gigabit wired connectivity, intelligent cloud management, and flexible deployment, making it an indispensable choice for building future-ready wireless networks that exceed today's demands and prepare for the technological advances of tomorrow.
