Ruijie 5 Gigabit Ports, 4 PoE+, 54W
12 sold in last 24 hours

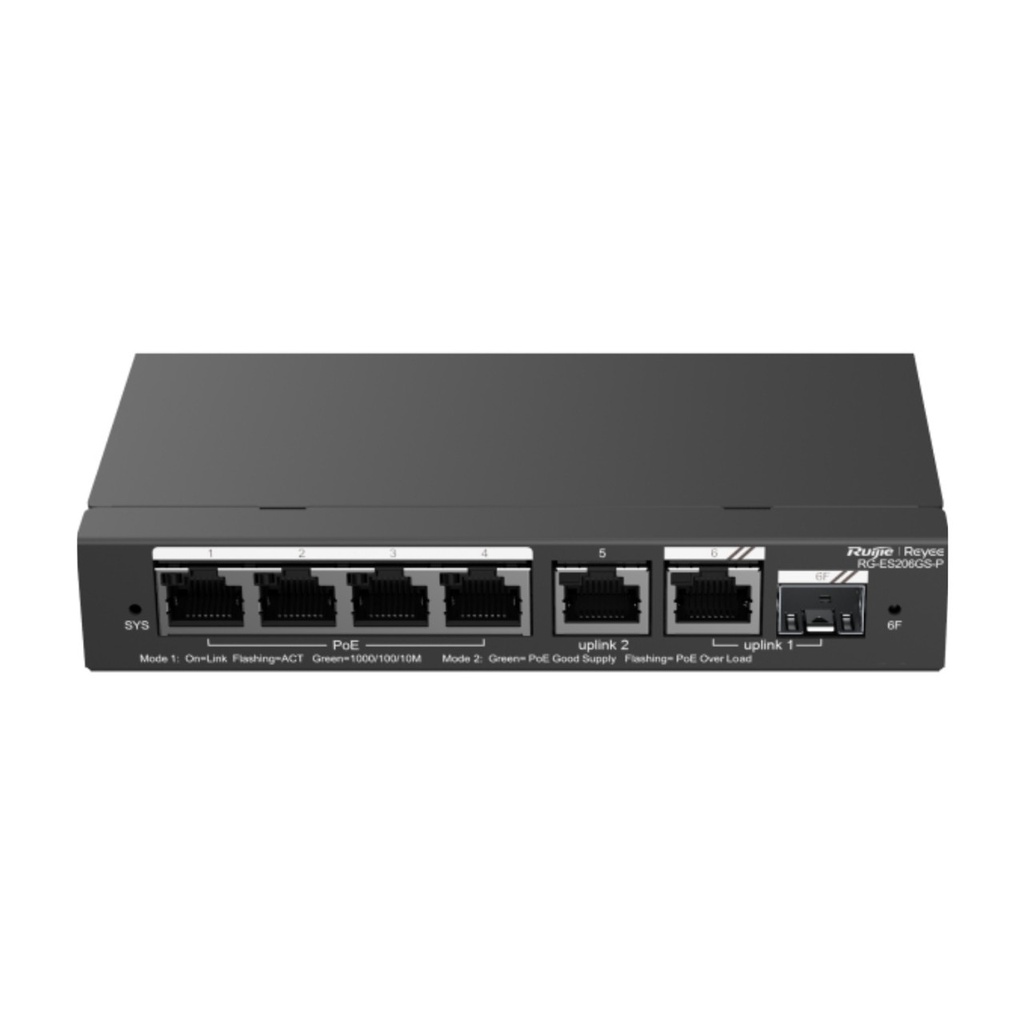

RG-ES206GS-P 5-Port Gigabit PoE+ Unmanaged Switch
Ruijie
Features
- 5 x 10/100/1000BASE-T Gigabit Ethernet Ports
- 4 x PoE+ (802.3at/af) Ports for powering devices
- Maximum PoE power budget of 54W
- Unmanaged switch for plug-and-play simplicity
- Fanless design ensures silent operation
- Auto MDI/MDIX on all ports
- Durable metal casing for enhanced heat dissipation
- Green Ethernet technology for energy efficiency
Specifications
| Network | |
| Ports | 5 x 10/100/1000BASE-T RJ45 (4 PoE+) |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af/at |
| Forwarding Mode | Store-and-forward |
| PoE | |
| PoE Ports | 4 |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 54W |
| Max Power Per Port | 30W |
| Performance | |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | Up to 9KB |
| General | |
| Power Supply | External Power Adapter (e.g., 54V DC/1.1A) |
| Casing Material | Metal |
| Installation | Desktop |
| Operating Temperature | 0°C to 40°C |
| Power Consumption | <60W (with full PoE load) |
Professional Overview
The Ruijie RG-ES206GS-P is a high-performance 5-port Gigabit unmanaged PoE+ switch, meticulously engineered to provide reliable, high-speed network connectivity with integrated power delivery for small office, home office (SOHO), and small to medium-sized business (SMB) environments. With five 10/100/1000 Mbps RJ45 ports, including four PoE+ compliant ports (IEEE 802.3at/af) and a total power budget of 54W, this switch is an ideal solution for powering IP cameras, wireless access points (APs), VoIP phones, and other PoE-enabled devices, significantly simplifying installations by eliminating the need for separate power outlets and adapters.
Designed for effortless setup and operation, the RG-ES206GS-P offers true plug-and-play functionality, requiring no complex configuration, software installation, or specialized IT expertise. Its intelligent Auto MDI/MDIX feature automatically detects and adjusts to the correct cable type and link speed, streamlining deployment. The fanless design ensures completely silent operation, which is critical for noise-sensitive environments like offices, meeting rooms, or residential settings, contributing to a more comfortable and productive atmosphere.
This Ruijie switch is built for efficiency and reliability, featuring a durable metal casing that not only provides robust physical protection but also aids in efficient heat dissipation, ensuring stable and reliable performance over extended periods, even under full PoE load. Additionally, its Green Ethernet technology intelligently manages power consumption based on link status and cable length, reducing operational costs and environmental impact. With a switching capacity of 10 Gbps and a packet forwarding rate of 7.44 Mpps, the RG-ES206GS-P efficiently handles network traffic, minimizing latency and packet loss, thereby providing a solid, high-performance foundation for all your connected devices.
| Brand | Ruijie |
