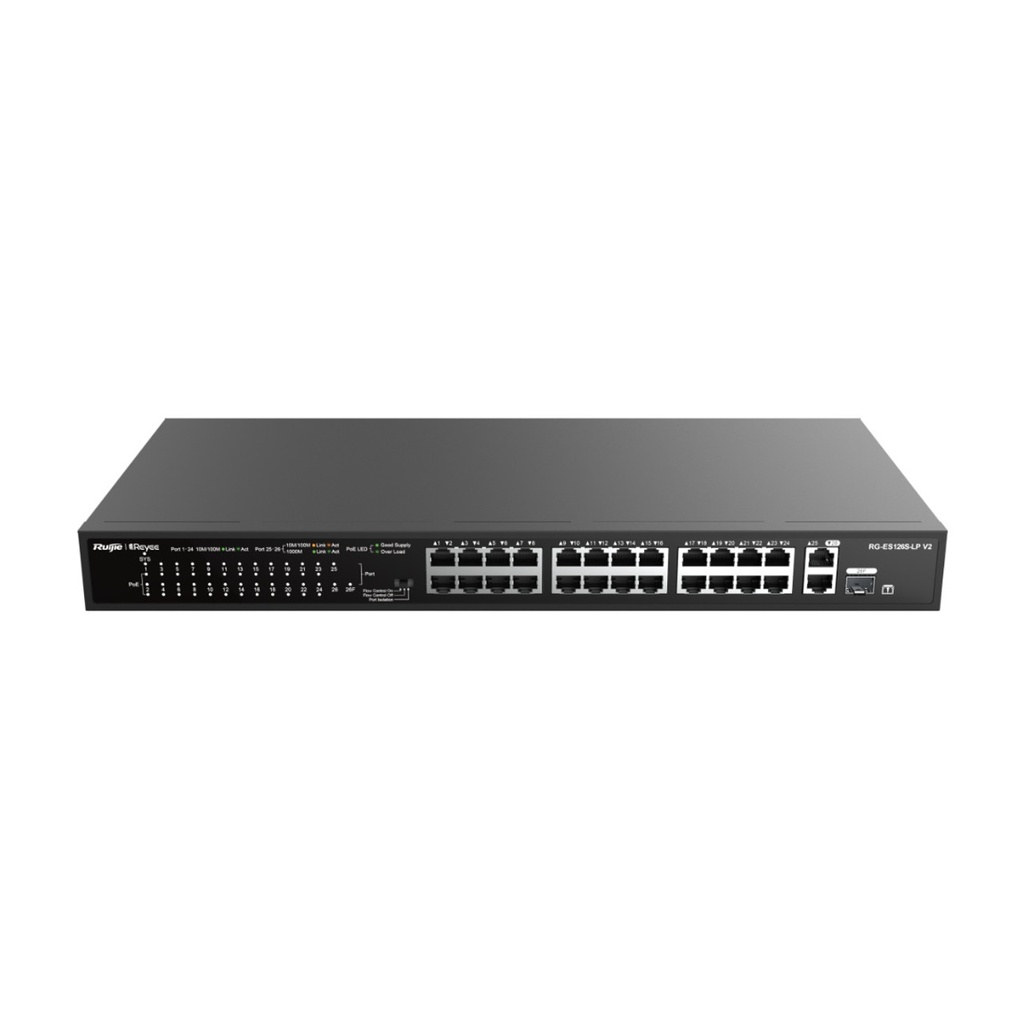

Ruijie 24-Port 100Mbps,1 Uplink Port 1000Mbps, 24 ports PoE+. Max PoE 180W
9 sold in last 24 hours
RG-ES126FGS-LP 24-Port 100Mbps PoE+ Switch with Gigabit Uplink
Ruijie
Features
- 24 x 10/100BASE-T Auto-Negotiation Ports with PoE+ (802.3at/af)
- 1 x 10/100/1000BASE-T Gigabit Uplink Port
- Maximum PoE power budget of 180W
- Unmanaged switch for plug-and-play simplicity
- Fanless design ensures silent operation
- Auto MDI/MDIX on all RJ45 ports
- Durable metal casing for superior heat dissipation and longevity
- Energy-efficient design
Specifications
| Network | |
| Access Ports | 24 x 10/100BASE-T RJ45 (PoE+) |
| Uplink Ports | 1 x 10/100/1000BASE-T RJ45 |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af/at |
| Forwarding Mode | Store-and-forward |
| Transmission Rate | 10/100 Mbps (Access), 10/100/1000 Mbps (Uplink) |
| PoE | |
| PoE Ports | 24 |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 180W |
| Max Power Per Port | 30W |
| Performance | |
| Switching Capacity | 6.8 Gbps |
| Packet Forwarding Rate | 5.06 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | Up to 9KB |
| General | |
| Power Supply | Internal Power Supply (AC 100-240V) |
| Casing Material | Metal |
| Installation | Desktop/Wall-mount/Rack-mount |
| Operating Temperature | 0°C to 40°C |
| Power Consumption | <200W (with full PoE load) |
Professional Overview
The Ruijie RG-ES126FGS-LP is a high-capacity and efficient 25-port unmanaged switch, expertly designed to provide comprehensive data connectivity and powerful Power over Ethernet (PoE+) for expanding small to medium-sized network deployments. With twenty-four 10/100 Mbps PoE+ compliant ports (IEEE 802.3at/af) and a substantial total power budget of 180W, this switch is an excellent solution for deploying a large array of edge devices such as high-resolution IP cameras, numerous wireless access points (APs), VoIP phones, and other PoE-enabled equipment, significantly streamlining network infrastructure by eliminating the need for separate power sources.
A key distinguishing feature of the RG-ES126FGS-LP is its dedicated 10/100/1000 Mbps Gigabit uplink port. This high-speed uplink provides robust connectivity to the core network, NVRs, or other switches at Gigabit speeds, effectively preventing network bottlenecks and ensuring efficient data backhauling. This intelligent port configuration makes it perfectly suited for surveillance systems, small-to-medium business networks, and educational institutions requiring both extensive powered devices and efficient data backbone connectivity.
Designed for maximum ease of use, this unmanaged switch offers true plug-and-play functionality, requiring no complex configuration, software installation, or specialized IT expertise. Its intelligent Auto MDI/MDIX capability automatically detects and adjusts to the correct cable type and link speed, streamlining deployment. The fanless design guarantees completely silent operation, making it perfectly suited for noise-sensitive environments such as offices, retail spaces, educational institutions, or surveillance control rooms, contributing to a more comfortable and less intrusive atmosphere.
Constructed with a durable metal casing, the RG-ES126FGS-LP not only provides superior physical protection but also significantly enhances heat dissipation, ensuring stable and reliable performance over extended periods. With a robust switching capacity of 6.8 Gbps and a packet forwarding rate of 5.06 Mpps, this Ruijie switch efficiently handles high-volume network traffic, minimizing latency and packet loss. This combination of extensive PoE+ capabilities, a dedicated Gigabit uplink, silent operation, and robust construction makes the RG-ES126FGS-LP an outstanding and cost-effective choice for modernizing and expanding your network infrastructure with powered devices and reliable backbone connectivity.
| Brand | Ruijie |
