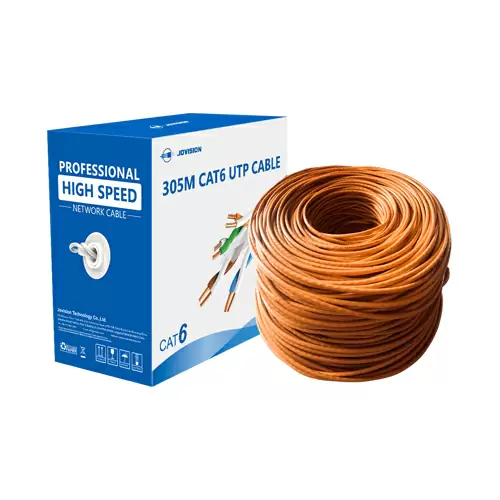

Jovision CAT6 UTP Cable
4 sold in last 24 hours
305M Cat6 Network Cable
Features
- Provide faster and more reliable data transfers.
- Improved performance and reduced signal degradation.
- Minimize crosstalk and interference for better signal quality.
- PVC sheath for added protection from moisture, dust, and other environmental factors.
Specifications
| Conductor | |
| Material | CCA (Copper content 8%) |
| Diameter | 0.57 mm ± 0.01 mm |
| American Wire Gauge | 23AWG |
| Insulation | |
| Material | HDPE |
| Min. Average Thickness | 0.18mm |
| Diameter | 0.89mm±0.1mm |
| Color (4 Pairs) | Blue, White/Blue; Orange, White/Orange; Green, White/Green; Brown, White/Brown |
| Separator | |
| Material | PE |
| Specification | Translucent 4.5 × 0.4 mm |
| Sheath | |
| Material | PVC |
| Min. Average Thickness | 0.8mm |
| Diameter | 6mm±0.20mm |
| Color | Orange |
| Electrical | |
| Max. DC Resistance of a Single Conductor | 18.5Ω/100m |
| Mechanical | |
| Tensile Strength | Sheath≥13.5 MPa, insulation≥16 MPa |
| Elongation at Break | Sheath≥150%, insulation≥300% |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at Break | ≥15% |
| Environmental | |
| Operation Temperature | –20°C to +60°C (–4°F to 140°F) |
| Installation Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature and Humidity | –10°C to +40°C (14°F to 104°F), <60% (RH) |
| Packaging | |
| Length | 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) |
| Packaging method | 2 boxes/protective box (1 pack of 2) |
| Packaging Dimensions | 390x390x240mm |
| Packaging Method | 500x400x410mm |
| Net Weight | 7.8kg±0.4kg |
| Gross Weight | 8.8kg±0.4kg |
| Brand | Jovision |
JVS-NL6A57 CAT6 UTP Cable.pdf
Download
