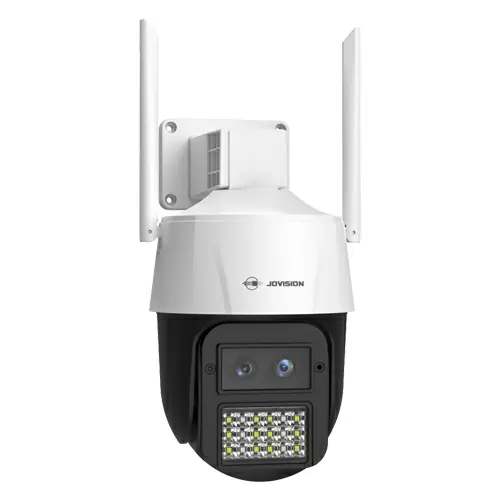

Jovision 3MP WiFi Smart Home Camera Dual Lens Human Tracking Sound Light Alarm Zoom
12 sold in last 24 hours
3MP, WiFi IP Camera, Dual Lens, Human Tracking and Snapshot, Sound Light Alarm, Smart Zoom, Night Vision, IP66
JVS-N98-X3
3MP Dual-Lens Full-Color Wi-Fi PTZ AI Camera
Key Features
- Binocular Zoom Lens, 3MP Ultra-clear Image Quality
- 18x LED lights, Dual Light Sources for Supplementary Lighting
- Built-in speaker + MIC, Support Volume Adjustment, Two-way Voice Intercom
- Support Warm Light, Infrared, Intelligent Dual Light, Sound and Light Warning Modes
- Support Wi-Fi Connection, Wired Connection and AP Connection
- Support Humanoid Detection, Humanoid Tracking
- Support SD Card, Maximum Support 512GB
- Support Region Intrusion, Line Crossing, Leave Detection, Road Occupation
Specifications
| Video | |
| Image Sensor | 1/2.9" CMOS Sensor |
| Max Resolution | 2304x1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265(Default) |
| Frame Rate | 25fps |
| Bitrate | Main Stream: 128Kbps ~ 4096KbpsSub Stream: 68Kbps~1024Kbps |
| SNR (dB) | 50dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 4-12mm |
| FOV | Wide Angle: H 78.5°, V 42.8°, D 92.6°; Telephoto: H 19.4°, V 10.9°, D 21.8° |
| Function | |
| Audio Codec | G.711U/G.711A (Default) |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large Font OSD, OSD Flashing on Alarm, OSD Position Settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness Adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Automatic Switching, Timing Switching, Day Mode, Night Mode |
| Privacy Mask | A Single Screen Supports 8 Privacy Masks, And Supports Up To 24 Masking Areas |
| Night Vision Optimization | Support |
| DWDR | Support |
| Screen Settings | Screen Mirroring, Screen Flipping |
| IP Adaptation | Support Automatic Adaptation of IP Address |
| Intelligent Analysis | Support Region Intrusion, Line Crossing, Leave Detection, Road Occupation |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis |
| Audio Function | Built-in Mic and Speaker |
| SD Card | Support(512GB) |
| Reset Button | Support |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 12 White LEDs + 6 IR LEDs |
| Fill Light Distance | White LED:50 MetersIR LED:40 Meters |
| Waterproof Level | IP66 |
| Power Supply | DC12V/2A |
| Power Consumption | <6W (During Day); <15W (At Night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | White/Black; Plastic/Front Shell Aluminum Alloy |
| Dimensions (WxHxD) | 160x257x187mm |
| Weight | 770g |
| Installation Method | Wall Or Ceiling Mount |
| Brand | Jovision |
| Resolution | 3MP |
| IP Protection Rating | IP66 |
| Camera Type | Wi-Fi Cameras |
| Night Vision Range | Up to 40M |
| Special Features | Full Color |
| Zoom | Motorized Zoom |
| Audio Function | Built-in Mic and Speaker |
